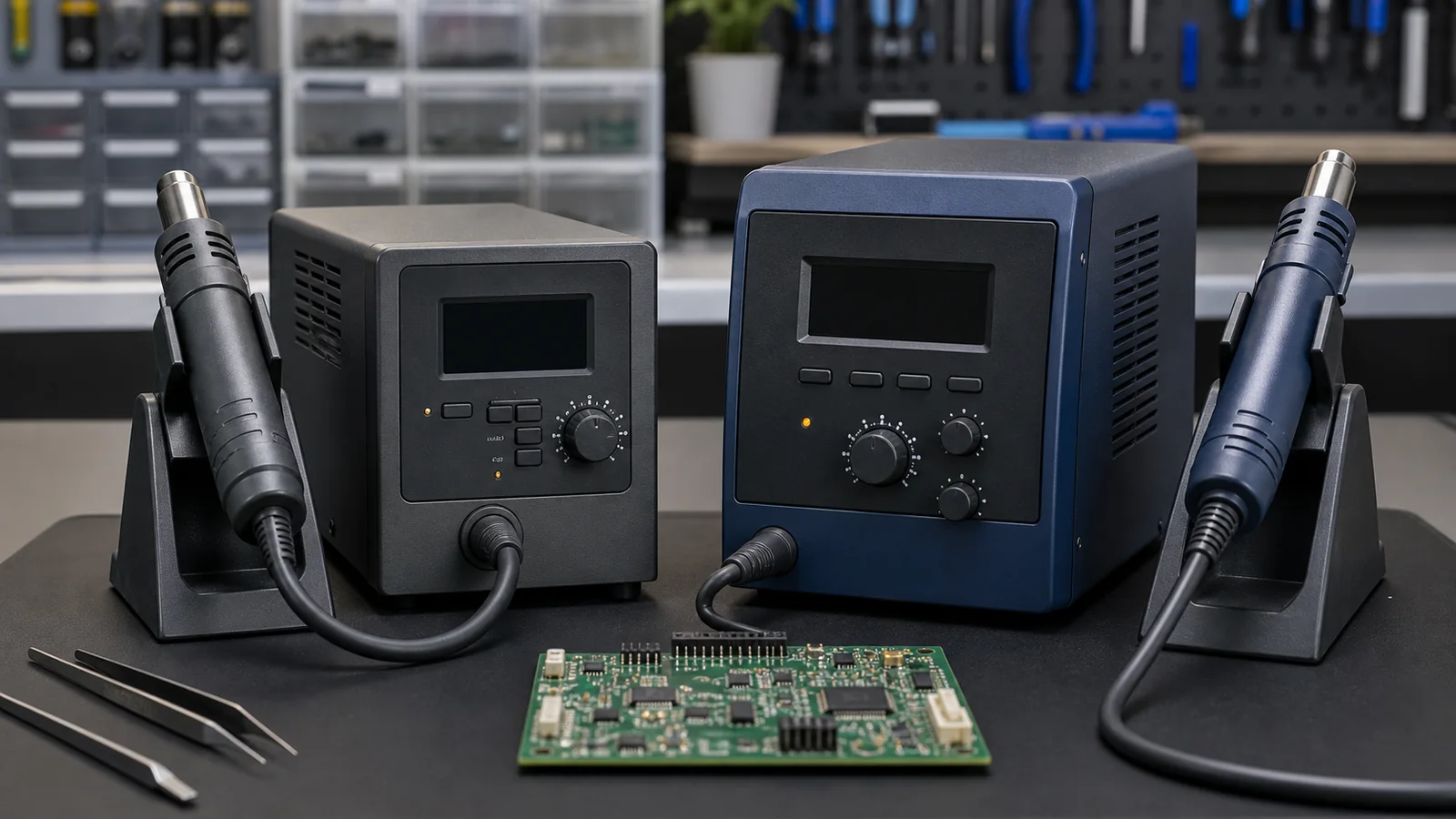

Quick 861DW vs Hakko FR-810B: Which Should You Buy?

The Quick 861DW is the sensible buy for most hobbyists and independent repair benches. It gives you high published power, broad airflow control, three saved channels, standby, and automatic cool-down without pushing into production-equipment pricing.

Buy the Hakko FR-810B when its integrated vacuum pickup, five programmable presets, chained heating steps, documented parts catalogue, and manufacturer support will save time on repeat paid work. Those are workflow features, not proof that it will magically repair a board better.

This is a research-based comparison. SolderMag has not run these two stations through a controlled bench test, so we do not claim one heats faster, holds a tighter real-board temperature, or lasts longer. The verdict is based on current manufacturer documentation, exact US product identity, included features, consumables, and the jobs each station is built to handle.

Quick answer

Choose the Quick 861DW if you want a capable hot-air-only station for connector repair, shields, QFN/QFP work, and regular independent bench use. Choose the Hakko FR-810B if you repeatedly remove larger SMD packages and will genuinely use the vacuum pickup or a programmed sequence of up to five temperature, airflow, and time presets.

Skip both if you only need hot air a few times a year. A cheaper station, better flux, the right nozzle, and practice on scrap boards will usually do more for occasional work than a premium control panel.

Quick 861DW vs Hakko FR-810B comparison

The specification table is not a performance test. Airflow figures are free-flow ratings, and Hakko explicitly notes that nozzle restriction changes the available range. The actual heat reaching a joint also depends on working distance, nozzle diameter, board copper, preheat, solder alloy, and technique.

Which one should you buy?

Buy the Quick 861DW if value and strong manual control matter

The Quick is the default recommendation because it covers the jobs that push buyers beyond a budget 858D-style station:

• repeat USB-C, HDMI, shield, QFN, and QFP work
• larger boards that pull heat away from the target
• a bench that already has a good soldering iron
• saved settings for a few recurring job types
• technicians who want hot air without paying for production features

Quick documents three work channels, with temperature and airflow saved per channel. That is enough for a practical routine such as one channel for small passives, one for connectors, and one for larger shield or ground-plane work. The holder triggers standby, and the station runs an automatic high-airflow cool-down cycle to protect the heater and handpiece after use.

The main trade-off is support confidence. Quick publishes the core specification and replacement heater identity, but Hakko USA exposes a deeper current catalogue of nozzles, heaters, pipes, holders, boards, and service parts. If downtime costs money or purchasing needs a clear institutional support path, that difference matters.

Buy the Hakko FR-810B if repeat process control pays for itself

The Hakko makes sense when the station is part of a repeatable work process rather than an occasional repair.

Its five presets store temperature, airflow, and time. The chain-preset function can call them in sequence, which Hakko describes as a simple multi-step rework profile. That can be useful for a shop that handles the same assembly repeatedly, a training bench that needs consistent settings, or a production process where the operator should not rebuild the procedure every time.

The integrated vacuum pickup is the other real reason to pay more. It lets the handpiece lift a component after reflow, and a visual indicator helps show when the pickup has taken hold. This does not remove the need for alignment, shielding, flux, or judgement. It does reduce the awkward move from heating to grabbing a released component with separate tweezers.

Do not buy the Hakko just because its display reaches 600°C. A higher maximum is not a reason to put more heat into a PCB. Buy it for the pickup system, preset chain, parts catalogue, and support path.

Heating power and airflow: do not buy the larger number

Quick publishes 1000W and 1–120 airflow levels. TME separately lists 1–120 L/min for its 230V 861DW-ESD, so US buyers should confirm the exact variant rather than treating that flow figure as universal. For the 120V FR-810B, Hakko publishes 820W total, a 790W handpiece, and 5–115 L/min across nine settings.

That does not establish that the Quick heats a particular board faster. Published input or heater power is only one part of a hot-air system. The control loop, heater geometry, handpiece, hose, nozzle, distance, and board all affect what happens at the solder joint.

The practical buying question is whether the station can supply controlled heat without forcing you to compensate with maximum temperature or excessive dwell time. Both products are well above the bargain-station tier on paper. Without the same nozzle, board, thermocouple placement, mains supply, and test method, a numerical winner would be invented.

If your current station struggles with large ground planes, first check technique. Our hot-air temperature and airflow guide explains why a larger nozzle, sensible preheat, shorter working distance, and controlled airflow can solve a job that more display temperature cannot.

Presets and daily controls

Quick's three channels are simple and useful. Save a temperature and airflow combination, then recall it without stepping through the controls. That is the right level of automation for a bench that sees different jobs throughout the day.

Hakko goes further. Its five presets store temperature, airflow, and time, and the chain function can run available presets from P-1 through P-5 in sequence. The value is repeatability: the operator can follow the same staged process without manually changing settings between steps.

This feature is easy to overbuy. If every board is different and you adjust by watching solder behaviour, three quick channels may be enough. If you process the same package and board family repeatedly, Hakko's timed chain becomes a real tool rather than menu clutter.

Hakko's vacuum pickup: useful, not universal

An integrated pickup is most useful when:

• the component has hidden pads or many leads
• the part should lift vertically after all joints release
• the same removal is performed repeatedly
• switching from the hot-air handpiece to separate tweezers adds risk or delay

It is less useful for tiny passives, connectors that need careful mechanical control, or one-off repair where you already work comfortably with tweezers.

Hakko describes this as a visual reflow/lift indicator: it shows when the vacuum pickup has lifted the component. Treat it as lift feedback, not an independent temperature or joint-wetting measurement. Never force a component if the full joint pattern has not released.

Nozzles, voltage, and box contents

This is where a specification-only comparison can cost you money.

Quick's manufacturer page documents three standard round nozzles for the listed 861DW variant. US marketplace bundles can differ, so verify the exact seller, input voltage, plug, and included nozzle set rather than assuming every 861DW box is identical.

Hakko's global specification identifies the N51-02 4mm nozzle as standard for some regional configurations, but Hakko USA's FR810B-05 product page says no nozzle is included. US buyers should budget for the correct N51 nozzle and confirm the package contents before ordering.

The Hakko catalogue is stronger for documented accessory depth. It lists N51 single, bent, and BGA nozzles plus replacement heaters, pipes, holders, circuit boards, and power parts. That does not make every part cheap; it makes the maintenance path clearer.

Buy the correct voltage variant. A high-power heating station is not a casual travel-voltage device, and an adapter does not convert mains voltage.

Who this is for

Quick 861DW

Buy the Quick if you:

• already own a separate temperature-controlled soldering station
• repair consumer electronics regularly
• want saved settings without building timed profiles
• need a clear step up from a small budget blower
• care more about capability per dollar than an institutional service path

Hakko FR-810B

Buy the Hakko if you:

• run repeat SMD removal procedures
• will use a vacuum pickup enough to save real bench time
• need timed, chained presets
• want a broad documented parts and nozzle catalogue
• buy tools for a shop, school, lab, or production environment

Who should skip both

Skip both if your work is mostly wires, headers, switches, keyboard kits, and through-hole parts. Buy a better iron first; our hot air rework station vs soldering iron guide explains the split.

Also skip them if you are new to hot air and plan to learn on valuable boards. Start on scrap hardware. Budget for flux, Kapton or aluminium shielding, tweezers, board holding, nozzle options, and local fume capture before spending the whole budget on the station.

Our best hot air rework stations guide covers cheaper combination stations and the situations where they are enough.

Alternatives

A YIHUA 995D+-class combination station makes more sense when you need both an iron and hot air in one compact unit. It is not the same serviceability tier as separate tools, but it can be a sensible first hobby bench.

An 858D/8586D-style station is enough for occasional SMD learning and scrap-board practice. The compromise is support, build consistency, airflow control, and confidence on expensive hardware.

For professional buyers who do not need Hakko's pickup and preset chain, compare other established hot-air-only stations rather than assuming every premium feature is necessary. The right alternative is the one with the nozzle ecosystem and local service path you can actually access.

Whatever you choose, pair the station with the right flux for electronics work and source capture for solder fumes. Hot air spreads flux smoke across a wider area than a quick iron joint.

Common buying mistakes

• Choosing by maximum temperature. Normal rework is about controlled heat delivery, not running the display at its ceiling.
• Treating watts as a benchmark. Published power does not isolate recovery, control accuracy, or heat at the joint.
• Ignoring nozzle cost. Hakko USA explicitly sells the FR810B-05 without a nozzle.
• Ordering the wrong voltage. Confirm mains voltage and plug before buying.
• Forgetting the rest of the bench. Flux, shielding, tweezers, magnification, a holder, and fume capture all affect the result.
• Assuming premium hardware replaces practice. It does not.

FAQ

Is the Quick 861DW worth it?

Yes, if hot-air work is regular rather than occasional. Its three saved channels, published 1000W power, broad airflow control, standby, and automatic cool-down make sense for frequent connector, shield, and SMD repair. A cheaper station is enough if you use hot air only a few times a year.

Is the Hakko FR-810B better than the Quick 861DW?

It has more process features: an integrated vacuum pickup, five timed presets, chained preset operation, and a deeper documented service-parts catalogue. That makes it the better workflow tool for repeat production or institutional use. It does not prove better heating performance without a controlled comparative test.

Does the Hakko FR-810B include a nozzle?

Hakko USA says the FR810B-05 station is sold without a nozzle. Hakko's global specifications describe a 4mm N51-02 as standard in some regional configurations, so buyers must check the exact regional kit and seller contents.

Can the Quick 861DW create a multi-step temperature profile?

Quick documents three saved work channels for temperature and airflow. Hakko explicitly documents sequential chaining of up to five presets with temperature, airflow, and time. If automated staged profiles are central to the job, the Hakko is the clearer fit.

Do I still need a soldering iron?

Yes. Hot air handles removal and broad reflow; an iron is still better for pad cleanup, solder wick, through-hole joints, wires, adding solder, and precise touch-up.

Final recommendation

Buy the Quick 861DW for a serious hobby bench, side-hustle repair work, or an independent shop that wants capable manual hot air and simple saved settings. It is the practical default.

Buy the Hakko FR-810B when vacuum pickup, five-step preset chaining, documented consumables, and manufacturer support solve a repeated operational problem. If you cannot name that problem, do not pay for the feature set.

Sources and methodology

• Quick 861DW manufacturer features and specifications: https://www.quick-global.com/index.php/proinfo/222.html
• TME Quick 861DW-ESD specifications, functions, and airflow range: https://www.tme.com/us/en-us/details/quick-861dw-esd/hot-air-stations/quick/861dw-esd/
• Hakko FR-810B global specifications and regional variants: https://www.hakko.com/english/products/hakko_fr810b_spec.html
• Hakko USA FR810B-05 features, package warning, nozzles, and service parts: https://hakkousa.com/products/fr-810b-smd-hot-air-rework-station.html
• Hakko FR-810B manual, including chain-preset operation: https://hakkousa.com/amfile/file/download/file/3003/product/11838/

Product claims were checked against manufacturer documentation on 15 July 2026. Amazon links were checked for exact product-title matches and Associate-tag retention. We did not use price, rating, review-count, availability, or hands-on performance claims.
